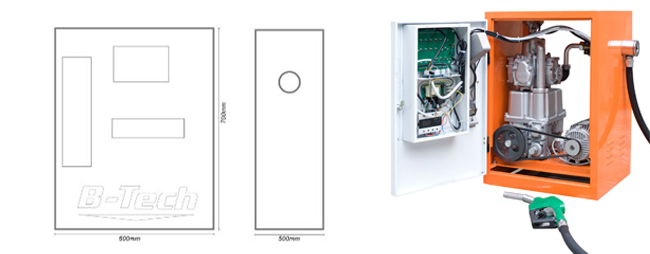

Small/Mobile Diesel Fuel Dispenser BT-A2
Product Overview:
Technical Date |
|
| Ambient temperature | -25°C~ +55°C (-40℃~55℃) |
| Humidity | ≤90% |
| Max flow rate | 50L/min or 80L/min |
| nozzle | TDW 11A automatic nozzle |
| Suction distance | 6m(Vertical), 50m(horizontal) |
| Accuracy | ±0.2% |
| Repeating tolerance | ≤0.15% |
| Hose | 3m(low hang), 4.5m(high hang) |
| Inlet pressure | ≥54kPa |
| Outlet pressure | ≤0.3MPa |
| Voltage | 220V / 380V (50/60Hz) |
| Noise | ≤70dB(A class) |
| Warranty | One year or two year |
| Display | Sale 0.00 ~ 9999.99 (changeable) |
| Unit Price range | 0.00~9999 (changeable) |
| Accumulative range | 0~9999999999.99 |
| Gross Weight | 65kg |
Application: Diesel, Kerosene, and other specified liquid.
Design Features:
Product Range:
