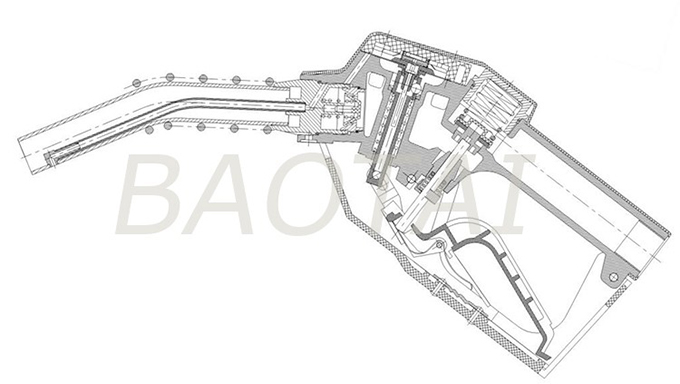

TDW-11A Automatic Nozzle
TDW 11A automatic nozzles are designed with today's consumers in mind. Small, trim, light weight, easy and convenient to use, It is a rugged performer that offers long life and reliable service. "Accu-stop " flow control-allows your customers to top off their tank to the exact amount they want and easy to stop gasoline flow precisely.
Features and Benefits:
Ø Low profile aluminum body-light weight, easier to handle, provides an attractive, image enhancing appearance.
Ø Full hand insulator-protects both nozzle and vehicle, and insulates user's hands.
Ø Hold-open rack is available for full service application-the one hand control means easy setting to flow rate for customer convenience.
Ø Easily replaced spout-simply remove the spout retaining screw. Replacement provides and entirely new outlet check valve. Kits are available from TDW.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Ø 100% Factory Tested.
| Material | |
| Body | Aluminum |
| Lever and lever guard | Duratuff |
| Main stem | Extra hard stainless steel |
| Seals | Buna-N, Viton |
| Technical Specifical | |
| Working Pressure | 0.2 Mpa |
| Auto Shut-off sensibility | 0.1 second |
| Thread | NPT/BSP |
| Spout Outlet Diameter | 15/16", 13/16" (20mm or 16mm) |
| Inlet Size | 3/4" |
| Flow Rate | 18-60 L/m(15/16"), 15-40 L/m(13/16") |
| Net Weight |
1.15 KG |
| Order Specifications | ||
| Item No. | Inlet Thread | Spout O.D. |
| TDW-11A01 | 3/4" NPT | 13/16" |
| TDW-11A02 | 3/4" NPT | 15/16" |
| TDW-11A03 | 3/4" BSP | 13/16" |
| TDW-11A04 | 3/4" BSP | 15/16" |
| Package Data | |
| Size | Weight |
| 1pcs = 43*17*6.5 cm (box) | 1.3 kg |
| 20pcs = 0.1 club (carton) | 26.3 kg |
| Color Options | |
| Red, Green, Blue, Yellow, Orange, Black |
